AOTU Machinery Factory direct Double-curvature Glass Tempering Furnace

Product Categories
Luoyang Aotu Machinery CO.,LTD
Contact Now

AOTU Machinery Factory direct Double-curvature Glass Tempering Furnace

Brand Name : AUTO

Model Number : AT-TD1608

Certification : CE

Place of Origin : HENAN

MOQ : 1 set

Price : USD 50000-200000USD/SET

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 60 sets/year

Delivery Time : 60-90 working days

Packaging Details : Export safety packing

Machine Type : Glass Tempering Furnace

Condition : New

Production Capacity : 10-15Loads/h

Max glass size : 1600*800mm

Glass thickness : 4-6mm

Application : Radiation/ Air force convection type furnace

Tempering type : Two sides Bent

Product Name : Glass Tempering Furnace

Contact Now

AOTU Machinery Factory direct Double-curvature Glass Tempering Furnace

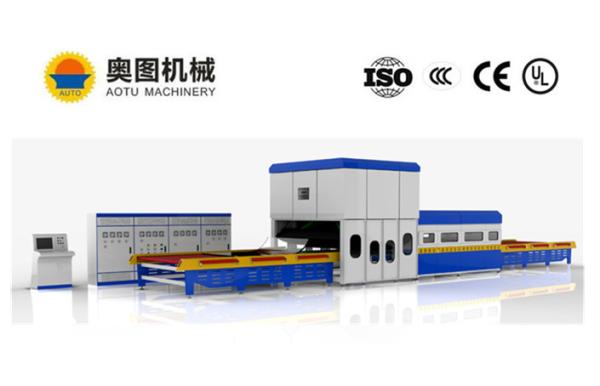

Flat and curved Glass Tempering Furnace Machine


FURNACE MODEL NO. AT-TD1608


Supply scope:
1. Loading table 2. Bend Quenching section 3. Heating Section 4. Flat Quenching section
5. Unloading table 6. Control System 7. Cooling System 8. Spare parts

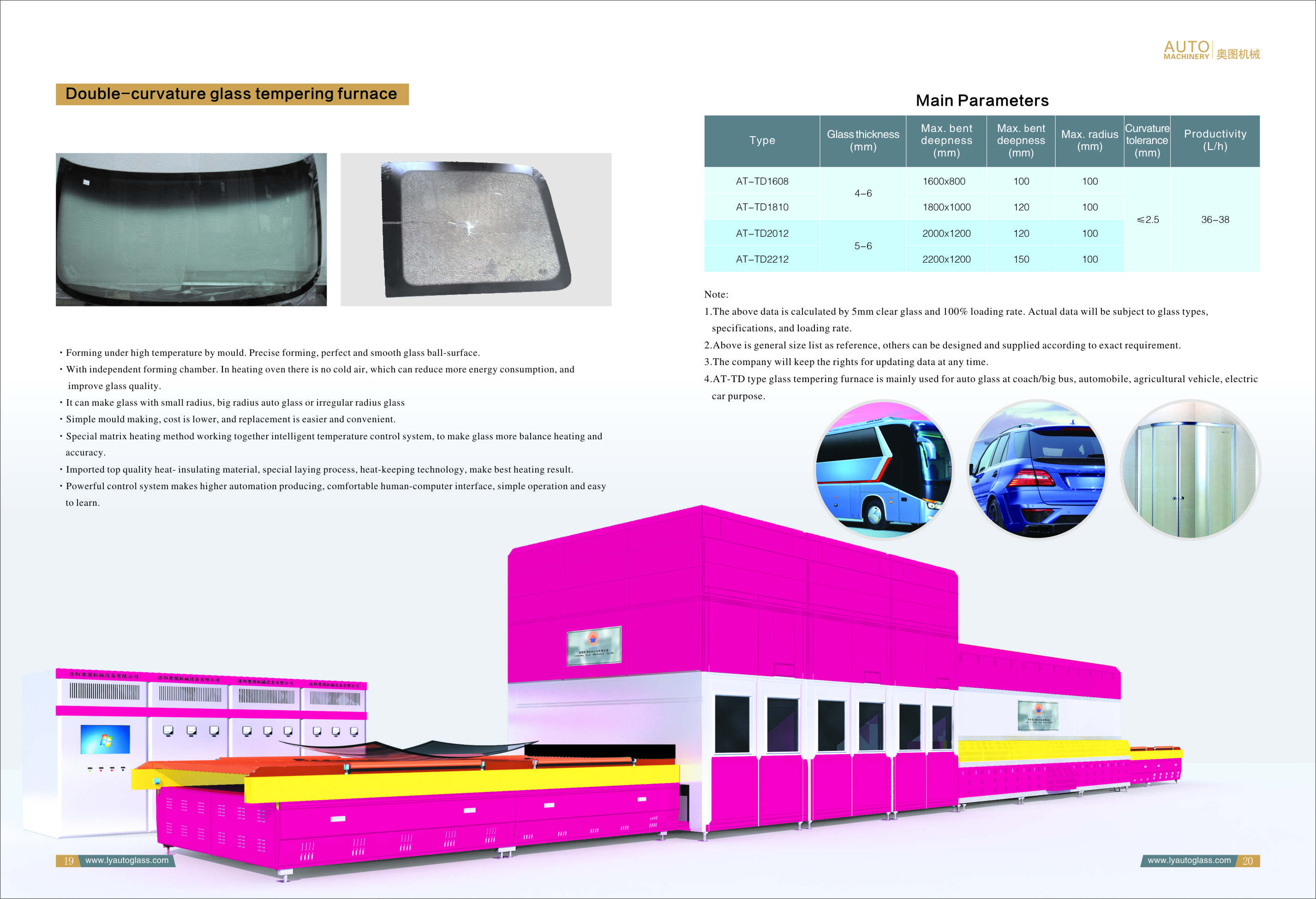

Main Parameters
Type Glass Thickness(mm) Max.bent deepness(mm) Max.bent deepness(mm) Max.radius(mm) Curvature tolerance(mm) Productivity(L/H)
AT-TD1608 4-6 1600*800 100 100 <2.5 36-38
AT-TD1810 4-6 1800*1000 120 100 <2.5 36-38
AT-TD2012 5-6 2000*1200 120 100 <2.5 36-38
AT-TD2212 5-6 2200*1200 150 100 <2.5

36-38

Videos:

https://youtu.be/y902cJ2XnPw

https://youtu.be/n0VKsqIm8sA
